1. Prepare IoT Hub and Device for this example

1.1. Developer PC - Generate Device self-signed certificates

[MUST] Please follow up tutorial-x509-self-sign

At last stage, you need to run the following command for making .pem file:

openssl x509 -in prov_device1.crt -out prov_device1.pem -outform PEM

For your reference, prepare example log as below: Notice! device ID = "W5100S_EVB_PICO_PROV_X509"

MINGW64 ~/certi
$ openssl genpkey -out prov_device1.key -algorithm RSA -pkeyopt rsa_keygen_bits:2048
............+++++
...................................+++++

MINGW64 ~/certi
$ openssl req -new -key prov_device1.key -out prov_device1.csr
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:.
State or Province Name (full name) [Some-State]:.
Locality Name (eg, city) []:.
Organization Name (eg, company) [Internet Widgits Pty Ltd]:.
Organizational Unit Name (eg, section) []:.
Common Name (e.g. server FQDN or YOUR name) []:W5100S_EVB_PICO_PROV_X509
Email Address []:

Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:

MINGW64 ~/certi
$ openssl x509 -req -days 365 -in prov_device1.csr -signkey prov_device1.key -out prov_device1.crt
Signature ok
subject=CN = W5100S_EVB_PICO_PROV_X509
Getting Private key

MINGW64 ~/certi
$ openssl x509 -in prov_device1.crt -out prov_device1.pem -outform PEM

MINGW64 ~/certi
$ ls
prov_device1.crt  prov_device1.key prov_device1.csr  prov_device1.pem

MINGW64 ~/certi
$

1.2. Azure portal

1.2.1. Create Azure Device Provisioning service

[MUST] For Device Provisioning service creation, please follow up the Quickstart: Set up the IoT Hub Device Provisioning Service with the Azure portal document first.

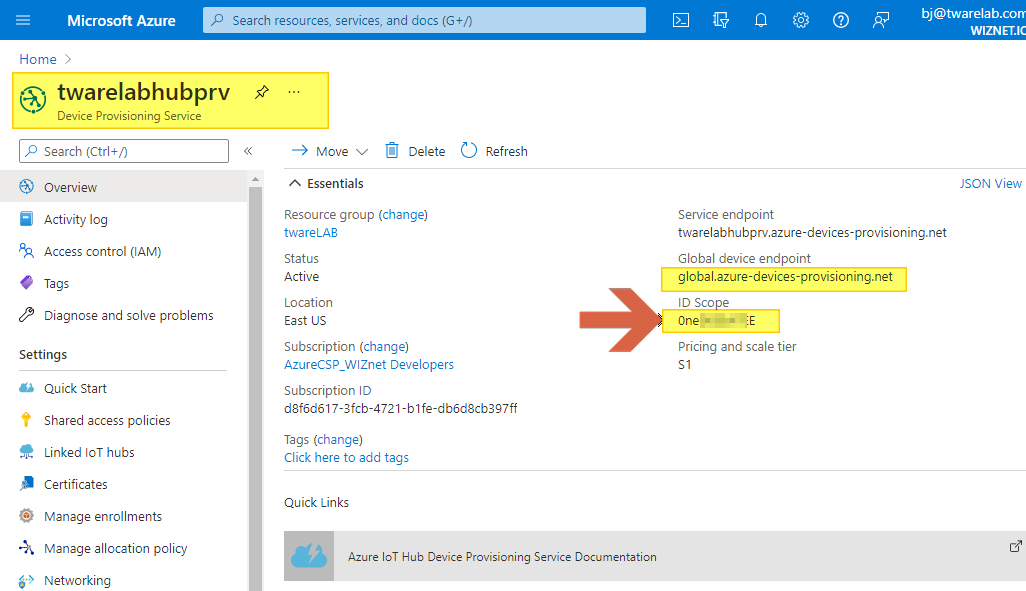

After creating DPS, get your "ID Scope" value

1.2.2. Link to Azure IoT Hub & DPS

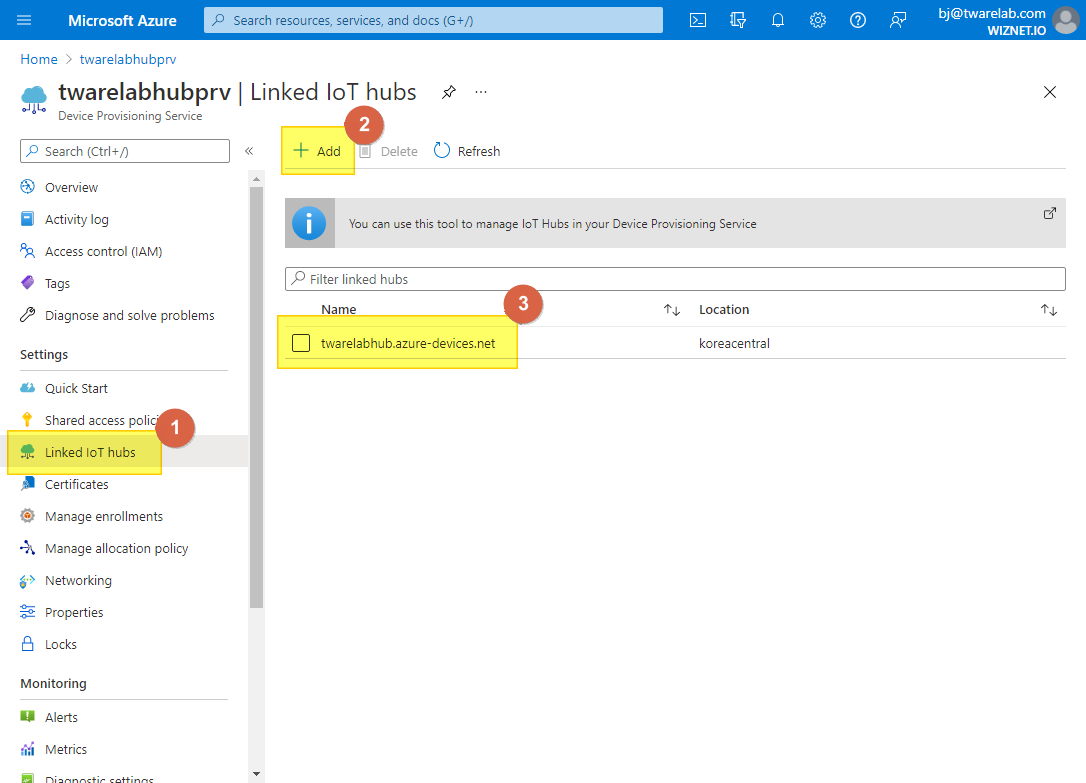

Connect DPS and IoT Hub service

1.2.3. Create a device enrollment

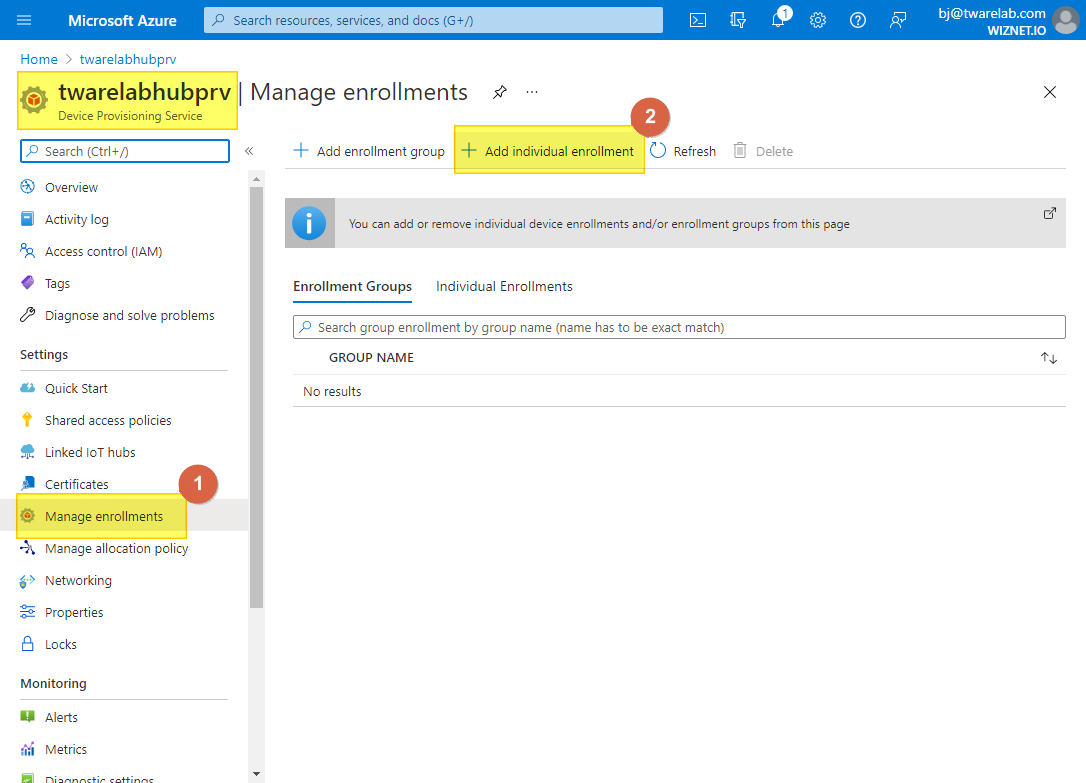

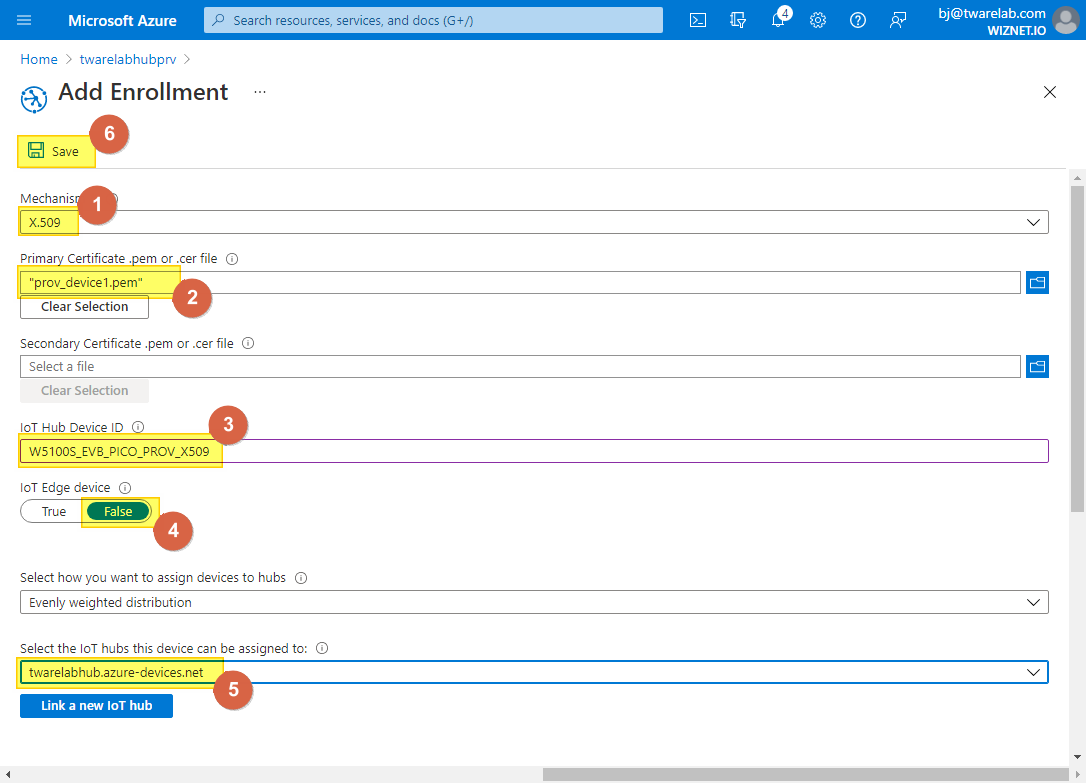

Add individual enrollment

Use "prov_device1.pem" file generated in previous section

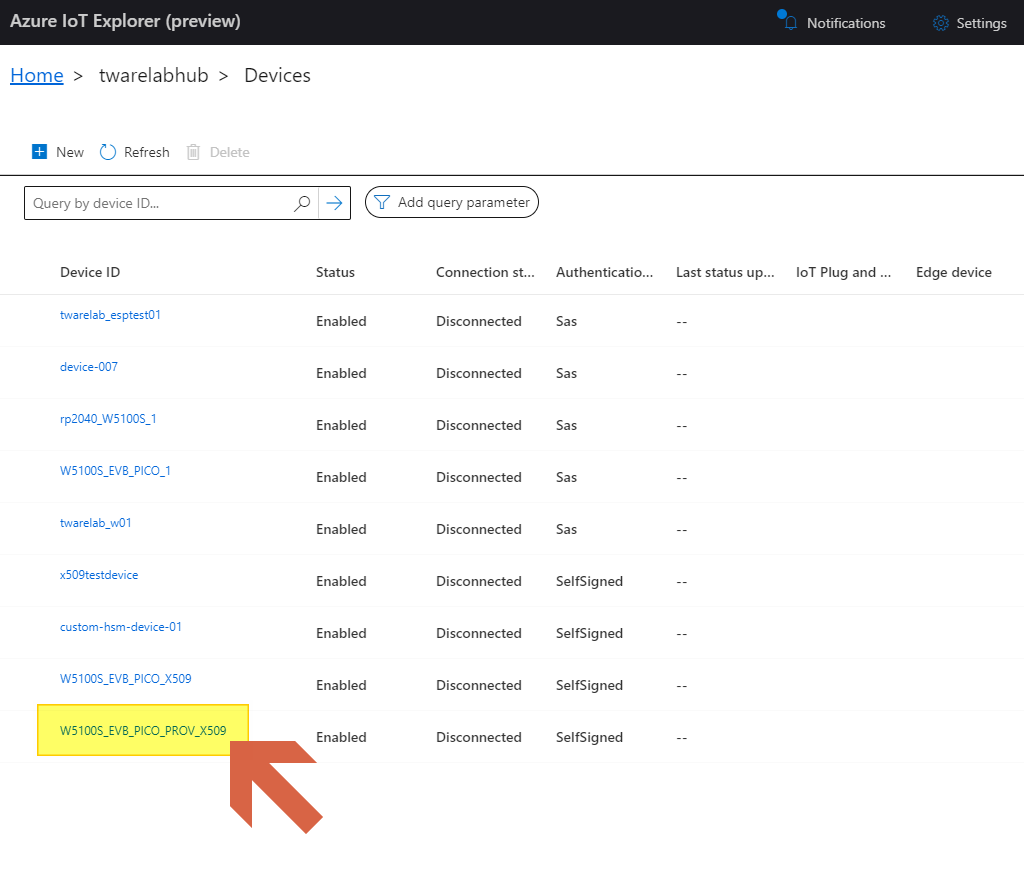

Check "Individual Enrollments" list

For more details,

please refer How to manage device enrollments with Azure portal
OR please read Quickstart: Provision an X.509 certificate simulated device document as well.

1.3. Developer PC - SDK setting

Get the key value from files (prov_device1.crt, prov_device1.key) as below:

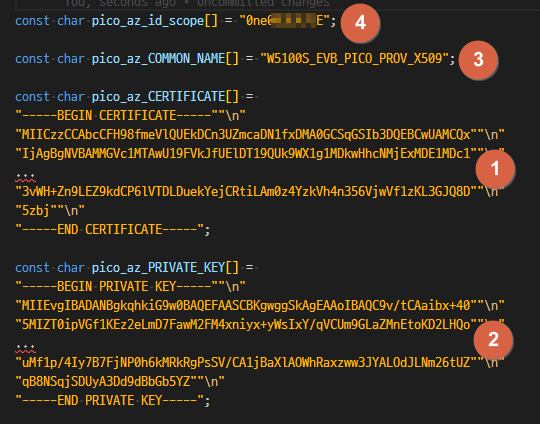

Edit /pico-azure-iot-sdk-c/application/sample_certs.c with generated certificates as upper. For Common name, Use "W5100S_EVB_PICO_PROV_X509" used in key generation.
- pico_az_CERTIFICATE and pico_az_PRIVATE_KEY use key value from files (prov_device1.crt, prov_device1.key)
- pico_az_id_scope use "ID Scope" string from 1.2.1. Create Azure Device Provisioning service
- pico_az_COMMON_NAME use "device ID" from 1.1. Developer PC - Generate Device self-signed certificates

In the following pico-azure-iot-sdk-c/application/main.c source file, find the line similar to this and replace it as you want:

(...)

// The application you wish to use should be uncommented
//
//#define APP_TELEMETRY
//#define APP_C2D
//#define APP_CLI_X509
#define APP_PROV_X509

(...)

// The application you wish to use DHCP mode should be uncommented
#define _DHCP
static wiz_NetInfo g_net_info =
    {
        .mac = {0x00, 0x08, 0xDC, 0x12, 0x34, 0x11}, // MAC address
        .ip = {192, 168, 3, 111},                    // IP address
        .sn = {255, 255, 255, 0},                    // Subnet Mask
        .gw = {192, 168, 3, 1},                      // Gateway
        .dns = {8, 8, 8, 8},                         // DNS server
#ifdef _DHCP
        .dhcp = NETINFO_DHCP                         // DHCP enable/disable
#else
        // this example uses static IP
        .dhcp = NETINFO_STATIC
#endif
